2-in-1 Biogas Desulfurizer & Dehydrator (H2S + Water Removal)

Overview – two functions, one manifold

Raw biogas leaving a household or farm digester carries two nuisances at the same time: hydrogen sulfide, which smells and corrodes burners, and water vapour, which condenses in the pipeline and blocks the gas flow. Most small plants handle them with two separate devices and two sets of connections. This 2-in-1 unit handles both on a single panel: gas passes the desulfurizer bottle(s) first, then the dehydrator bottle, then leaves through one 10 mm outlet to the appliance.

The assembly is built for site conditions rather than a laboratory. Every bottle is a sealed 3 L PBT vessel with a screw cap, connected by flexible hose on 10 mm barbs, and the whole manifold hangs on a plastic back panel that can be screwed to a wall. Adding capacity means adding a bottle to the panel – the 2-bottle version suits digesters up to 30 m³, the 3-bottle version up to 60 m³ – without changing the piping layout or the appliance connection.

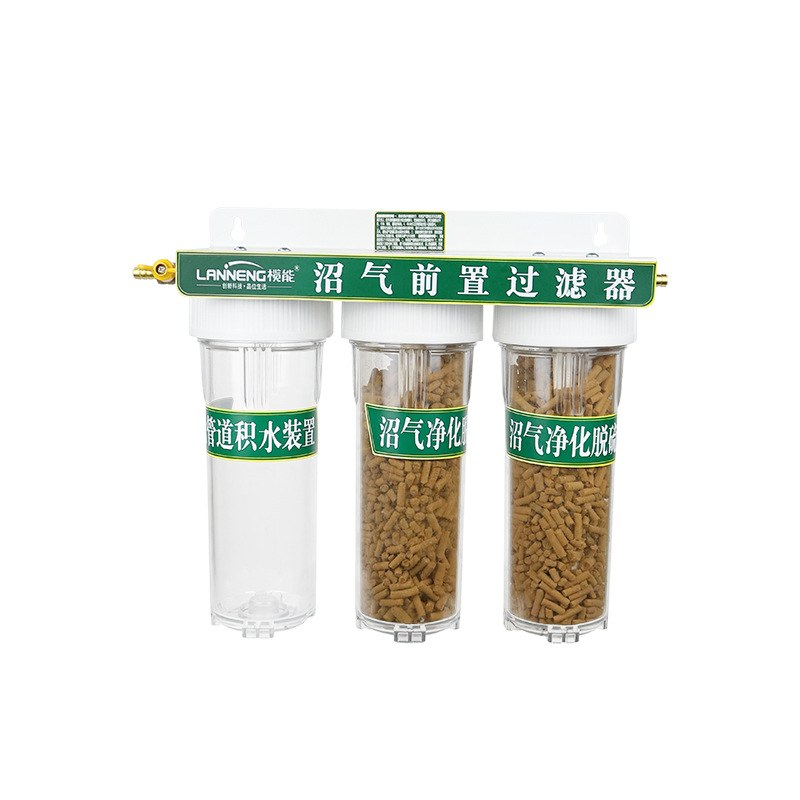

2-in-1 biogas desulfurizer and dehydrator with two H2S bottles and one water trap bottle

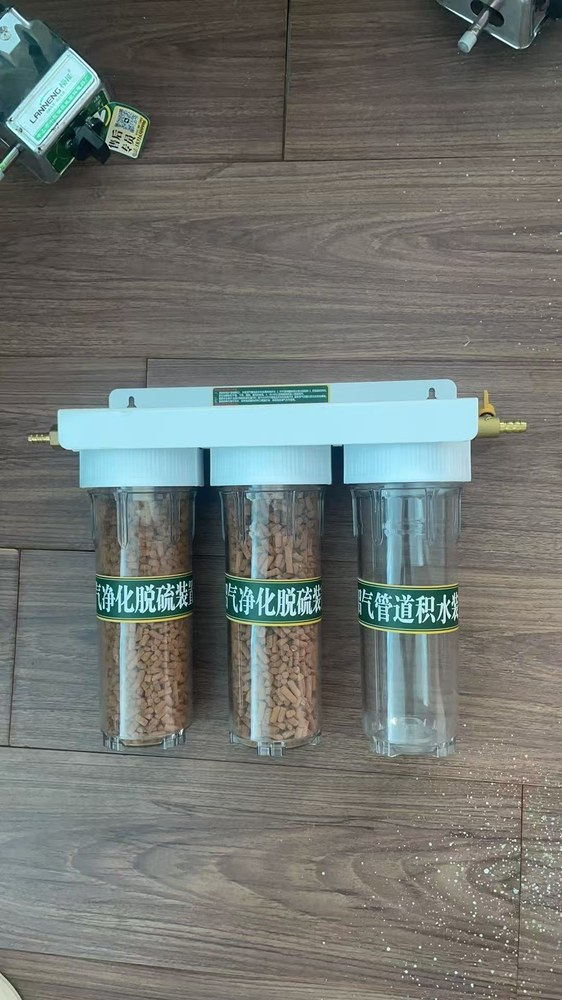

Assembled 2-in-1 biogas purifier set before dispatch, with bottles, panel and hose tails

Technical specifications

Parameter	2-bottle build	3-bottle build
Configuration	1 desulfurizer + 1 dehydrator	2 desulfurizers + 1 dehydrator
Bottle volume	3 L per bottle	3 L per bottle
Bottle dimensions	305 mm H × 110 mm W × 115 mm D	305 mm H × 110 mm W × 115 mm D
Back panel size	229 mm × 127 mm	352 mm × 127 mm
Overall height	305 mm	305 mm
Inlet / outlet	10 mm / 10 mm hose connection	10 mm / 10 mm hose connection
Body material	PBT plastic, sealed screw cap	PBT plastic, sealed screw cap
Media refilling	Screw-cap bottle, refillable	Screw-cap bottle, refillable
Suitable digester volume	Up to 30 m³	Up to 60 m³
Installation	Wall-mounted panel, vertical bottles	Wall-mounted panel, vertical bottles
Scope of supply	Bottles, back panel, hose and clamps	Bottles, back panel, hose and clamps

Values above are taken from the manufacturer’s bottle and panel drawings. Media type, media charge weight, allowable gas flow, pressure drop, outlet H2S and replacement interval are project-dependent and are quoted on request – they are not stated here as guaranteed figures.

Key features

Two functions in one pass – desulfurization and water removal are combined on a single manifold, so the gas train needs one connection at the digester and one at the appliance instead of two separate devices.
Capacity by the bottle – the same bottle and cap are used throughout; going from a 30 m³ to a 60 m³ digester means adding a bottle to the panel, not replacing the equipment.
Sealed PBT vessel – each 3 L bottle is moulded in PBT with a screw cap, so the media stays dry in storage and the bottle can be opened for refilling without tools.
Visible media condition – the translucent bottle wall lets the operator see the colour change of the media, which is the simplest field indicator that a refill is due.

Where it fits

Household digesters – digesters up to 30 m³ feeding a single stove or lamp: the two-bottle build fits on a wall next to the gas valve.
Farm and community plants – digesters up to 60 m³ with longer daily burning hours: the three-bottle build keeps more media in line.
Pre-treatment before appliances – mounted ahead of stoves, lamps, heaters, boilers and small generators to protect burners from H2S and condensate.

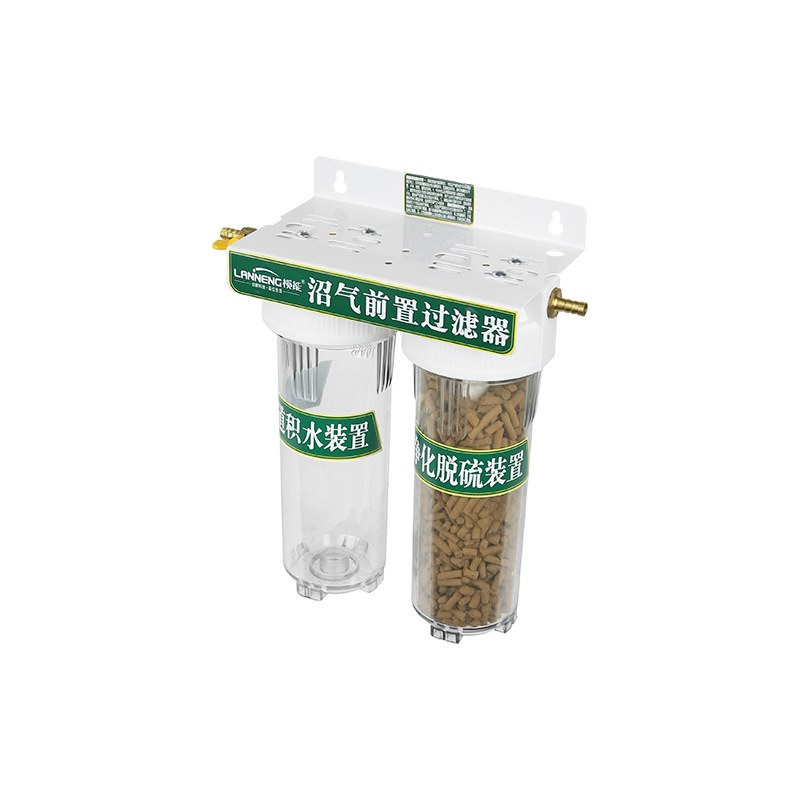

Two-bottle 2-in-1 configuration with one desulfurizer and one dehydrator, for digesters up to 30 cubic metres

Dimension drawings

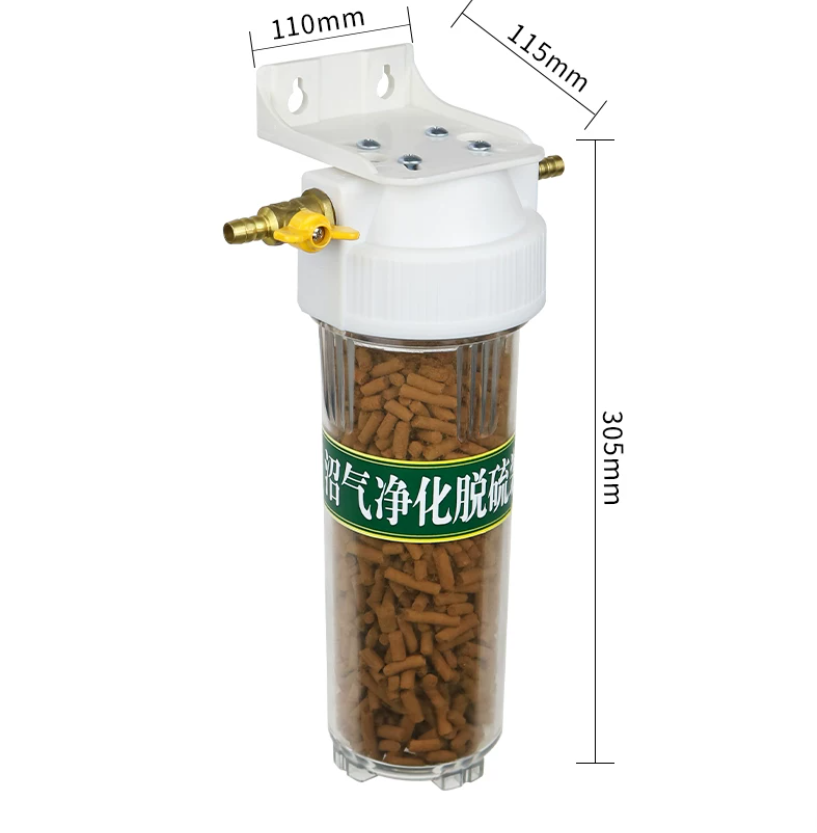

Single 3-litre desulfurizer bottle, 305 mm high, 110 mm wide, 115 mm deep, with 10 mm ports

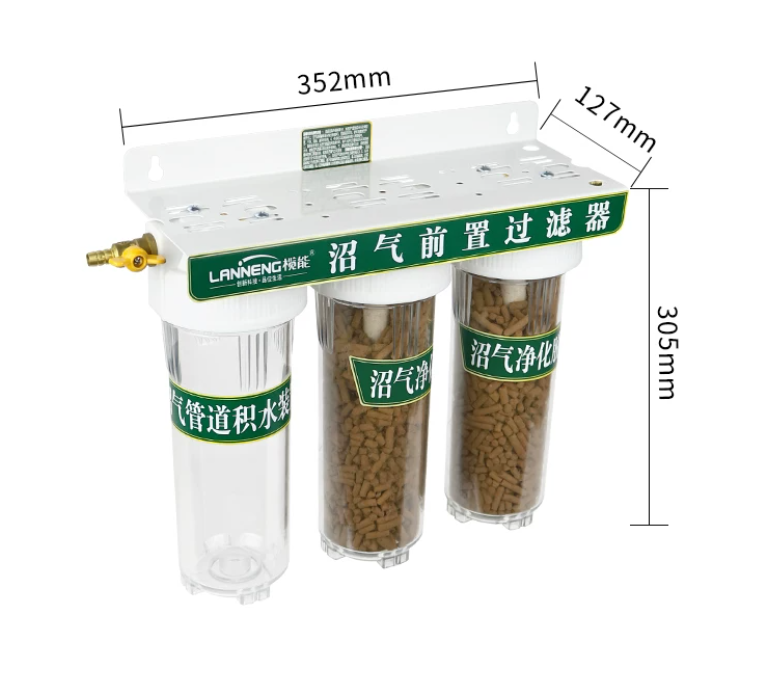

Three-bottle build dimension drawing: panel 352 mm by 127 mm, overall height 305 mm

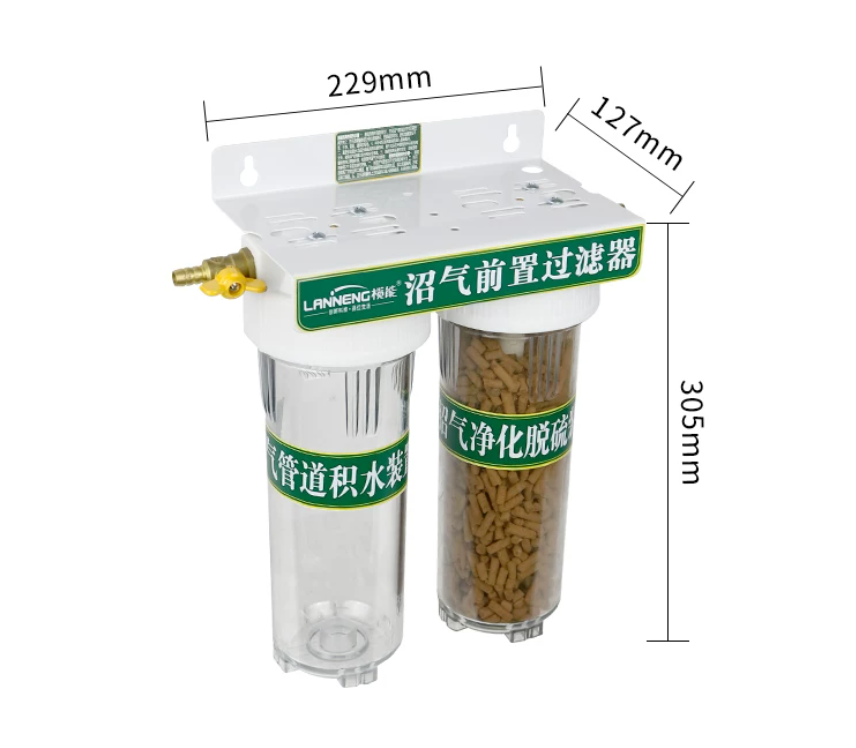

Two-bottle build dimension drawing: panel 229 mm by 127 mm, overall height 305 mm

Frequently asked questions

Which build should I choose for my digester?
Match the build to the digester volume: up to 30 m³ use the two-bottle build (1 desulfurizer + 1 dehydrator); up to 60 m³ use the three-bottle build (2 desulfurizers + 1 dehydrator).

How do I refill the bottles?
Each bottle has a screw cap. Unscrew the cap, replace the media, close the cap and put the bottle back on the panel – no piping needs to be opened.

Can I add capacity later?
Yes. The panel accepts additional bottles; contact us with your digester size and we will confirm the configuration.

Get a quotation

Tell us the digester volume, the appliance you are feeding and the H2S level you expect. We will confirm the bottle count, the media charge and the air freight or sea freight option.
